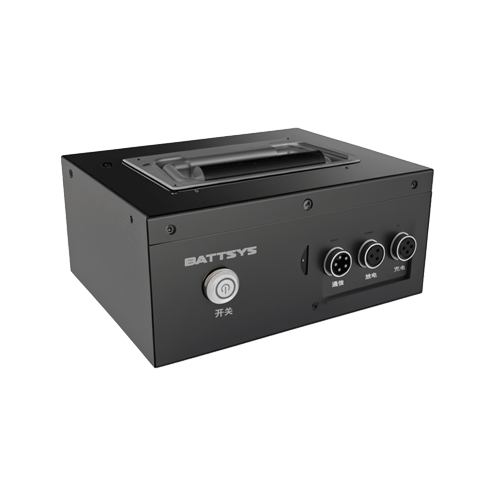

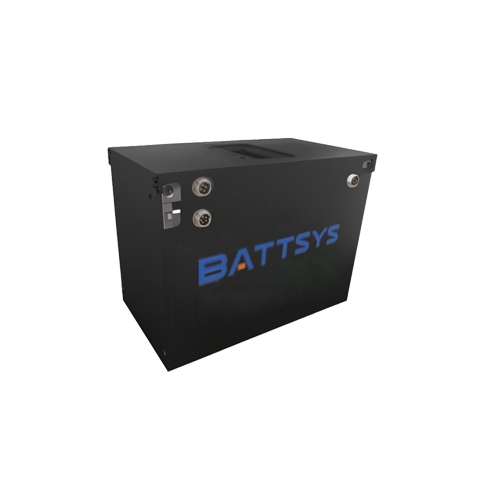

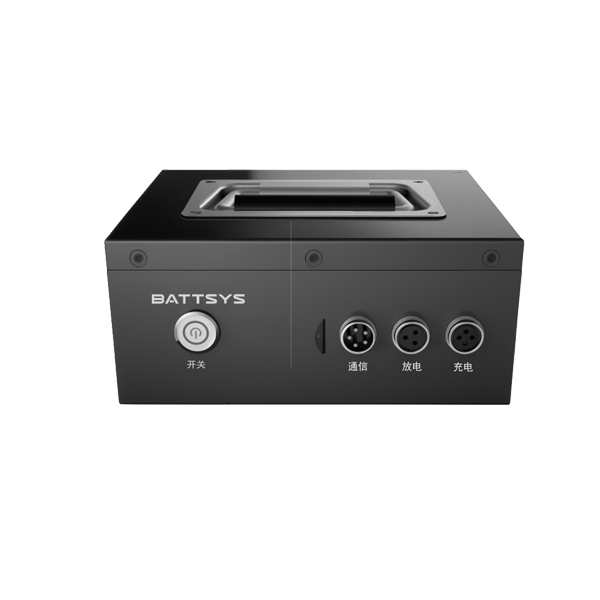

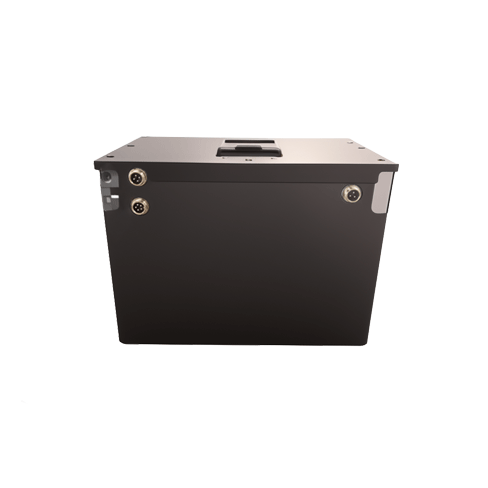

AGV Battery

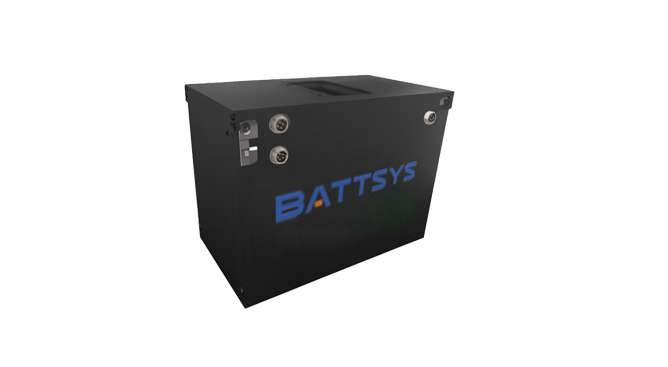

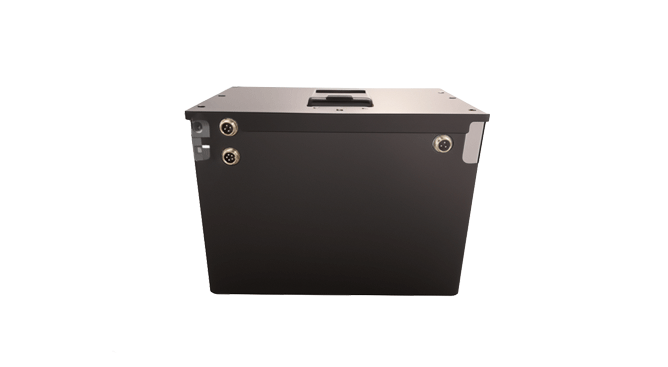

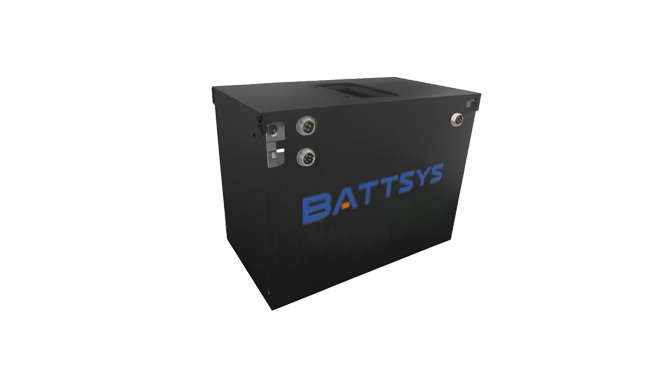

AGV Battery

Lithium batteries with longer life, higher energy density and faster charging time;

The battery pack is safe, with temperature probe, start automatic protection when over-temperature ;

Short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, balance and so on;

High cycle life of battery pack, in line with low carbon, energy saving, environmental protection value concept.

AGV lithium battery meet the efficient operation of automatic guided vehicles, to achieve rapidmovement of goods, and greatly improve the operational efficiency of enterprises. AGV lithium batteries can save energy, reduce the enterprise's energy consumption, and improve theeconomic efficiency of enterprises.
Certification
Customized Requirements

Features for AGV Battery

BATTSYS provides upgraded AGV lithium batteries with longer life, higher energy density, and faster charging. These enhancements help AGVs and AMRs move materials and products more efficiently and safely.

Fast charge
Long life
APP monitoring
Customized design

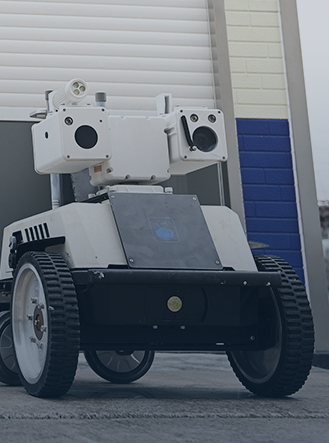

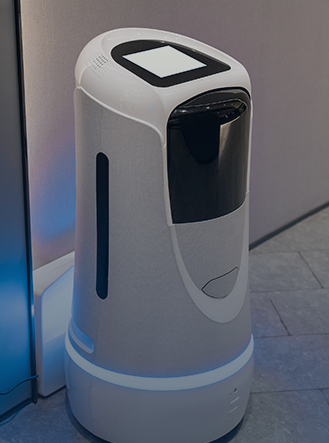

Applications for AGV Battery

AGV lithium batteries optimize automated guided vehicle performance, streamlining cargo movement for heightened operational efficiency and energy savings, bolstering economic returns for businesses.

Specification for AGV Battery

Can be customized, providing diversified solutions for various application scenarios.

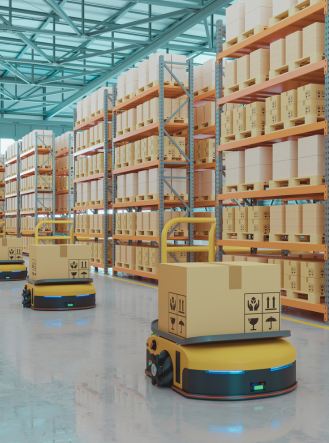

* Application:Lantent Mobile Robot (LMR)

  • Model
  • Cell Module
  • Nominal Voltage
  • Nominal Capacity
  • Energy
  • L*W*H
  •  Weight
  •  Discharge Current
  • Transient Discharge Current
  • Battery Case
  • 48V40Ah
  • 26650Fe/3.2V/4Ah
  • 48V
  • 40Ah
  • 1920Wh
  • 300x500x85 mm
  • 22kg
  • 40A
  • 80A
  • Steel
  • 25.6V60Ah
  • 26650Fe/3.2V/4Ah
  • 25.6V
  • 60Ah
  • 1536Wh
  • 230x500x85 mm
  • 20 Kg
  • 60A
  • 120A
  • Steel
  • 25.2V50Ah
  • 21700/3.6V/5Ah
  • 25.2V
  • 50Ah
  • 1260Wh
  • 240x200x90 mm
  • 15 Kg
  • 50A
  • 100A
  • Steel
  • 46.8V50Ah
  • 21700/3.6V/5Ah
  • 46.8V
  • 50Ah
  • 2340Wh
  • 430x200x80 mm
  • 25 Kg
  • 50A
  • 100A
  • Steel
  • 25.6V100Ah
  • 40135/3.2V/20Ah
  • 25.6V
  • 100Ah
  • 2560Wh
  • 350x250x150 mm
  • 30 Kg
  • 100A
  • 200A
  • Steel

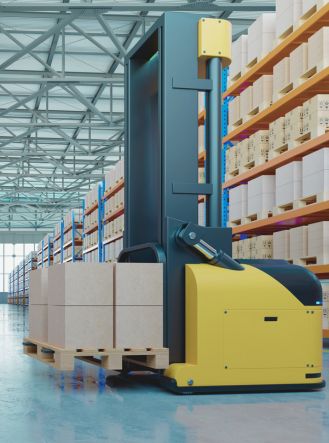

* Application:Forklift Mobile Robot (FMR)

  • Model
  • Cell Module
  • Nominal Voltage
  • Nominal Capacity
  • Energy
  • L*W*H
  •  Weight
  •  Discharge Current
  • Transient Discharge Current
  • Battery Case
  • 25.6V80Ah
  • 26650Fe/3.2V/4Ah
  • 25.6V
  • 80Ah
  • 2048Wh
  • 320x240x150 mm
  • 22 Kg
  • 80A
  • 160A
  • Steel
  • 25.6V60Ah
  • 40135/3.2V/20Ah
  • 25.6V
  • 60Ah
  • 1536Wh
  • 200x350x150 mm
  • 20 Kg
  • 60A
  • 120A
  • Steel
  • 25.6V40Ah
  • 26650Fe/3.2V/4Ah
  • 25.6V
  • 40Ah
  • 1024Wh
  • 200x200x140 mm
  • 18 Kg
  • 40A
  • 80A
  • Steel
  • 25.6V105Ah
  • LF105/3.2V/105Ah
  • 25.6V
  • 105Ah
  • 2688Wh
  • 345x304x210 mm
  • 26 Kg
  • 100A
  • 200A
  • Steel

* Application: Traction Robot

  • Model
  • Cell Module
  • Nominal Voltage
  • Nominal Capacity
  • Energy
  • L*W*H
  •  Weight
  •  Discharge Current
  • Transient Discharge Current
  • Battery Case
  • 51.2V60Ah
  • 26650Fe/3.2V/4Ah
  • 51.2V
  • 60Ah
  • 3072Wh
  • 480x250x150 mm
  • 35 Kg
  • 60A
  • 120A
  • Steel
  • 25.6V80Ah
  • 26650Fe/3.2V/4Ah
  • 25.6V
  • 80Ah
  • 2048Wh
  • 320x240x150 mm
  • 22 Kg
  • 80A
  • 160A
  • Steel
  • 25.2V50Ah
  • 21700/3.6V/5Ah
  • 25.2V
  • 50Ah
  • 1260Wh
  • 350x120x120 mm
  • 15 Kg
  • 50A
  • 100A
  • Steel
  • 25.6V80Ah
  • 26650Fe/3.2V/4Ah
  • 25.6V
  • 80Ah
  • 2048Wh
  • 320x240x150 mm
  • 22 Kg
  • 80A
  • 160A
  • Steel

* Applicaiton:Conveyor Mobile Robot (CMR)

  • Model
  • Cell Module
  • Nominal Voltage
  • Nominal Capacity
  • Energy
  • L*W*H
  •  Weight
  •  Discharge Current
  • Transient Discharge Current
  • Battery Case
  • 25.6V304Ah
  • LF304/3.2V/304Ah
  • 25.6V
  • 304Ah
  • 7782Wh
  • 655x255x320 mm
  • 65 Kg
  • 250A
  • 500A
  • Steel
  • 25.6V105Ah
  • LF105/3.2V/105Ah
  • 25.6V
  • 105Ah
  • 2688Wh
  • 345x304x210 mm
  • 26 Kg
  • 100A
  • 200A
  • Steel
  • 51.2V210Ah
  • LF105/3.2V/105Ah
  • 51.2V
  • 210Ah
  • 10752Wh
  • 740x430x260 mm
  • 108 Kg
  • 200A
  • 400A
  • Steel
  • 51.2V304Ah
  • LF304/3.2V/304Ah
  • 51.2V
  • 304Ah
  • 15564Wh
  • 790x435x320 mm
  • 132 Kg
  • 250A
  • 500A
  • Steel
