Pouch Polymer Cell

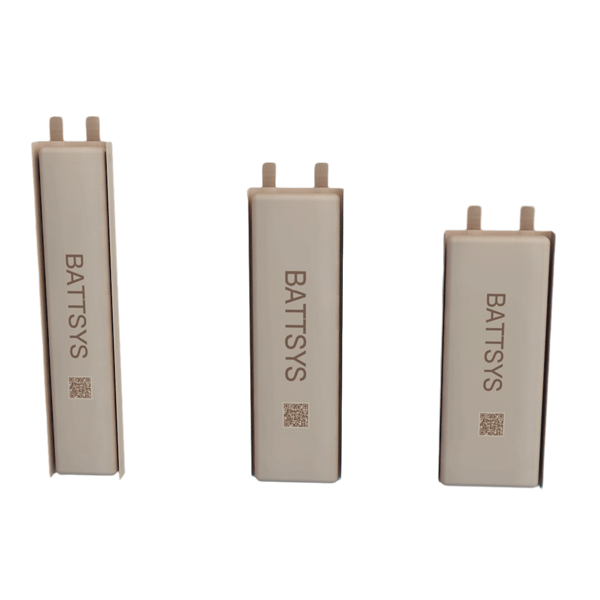

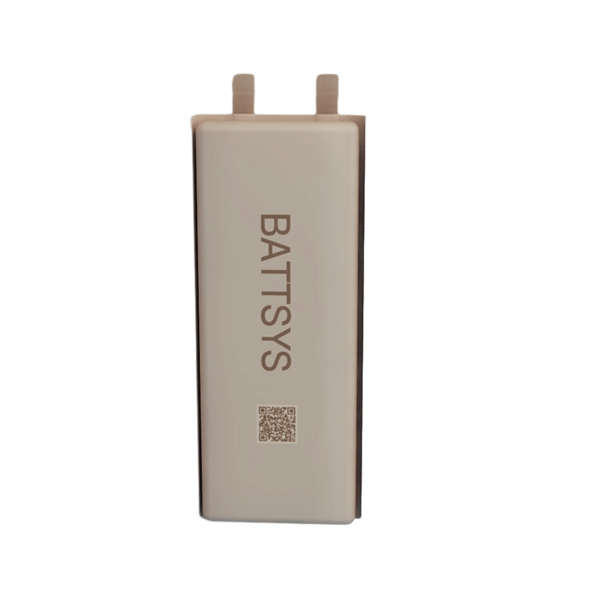

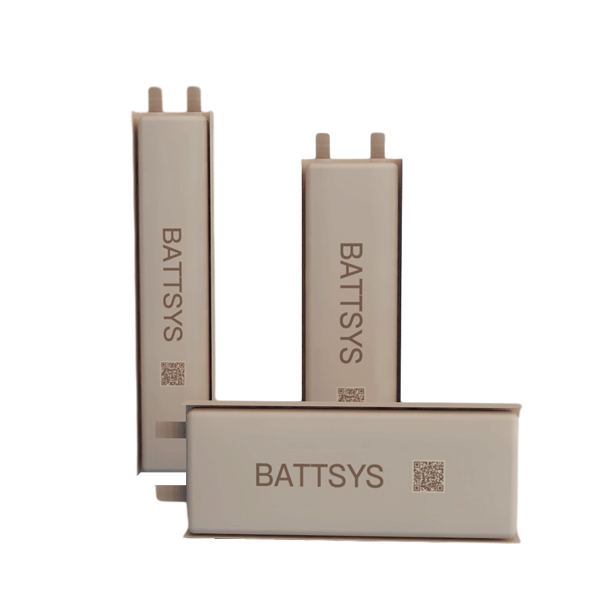

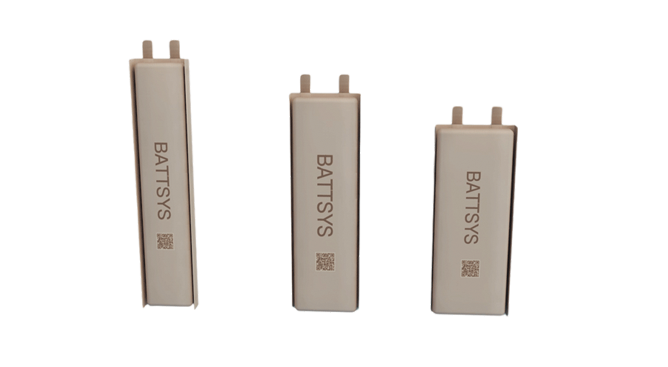

Pouch Square Cell

Wide voltage range, 3.7~3.88V.

High rate discharge, up to 20C.

High durability, 500+ cycles, low expansion rate <8%.

Customizable size.

Certification
Customized Requirements

Features for Pouch Square Cell

High safety performance. Wide voltage coverage range,3.7~3.88V serises,Ultra-high energy density,discharge rate,and power.

Wide Voltage Range
High Rate Discharge
Customizable Size
500+ Cycles

Applications for Pouch Square Cell

Widely used in HNB Devices,Vape,Electric Toothbrush,Stylus Pen,Recording Pen and Personal Care Devices,etc.

HNB Appliances

Vaping Device

Medical Electronics

Mobile Power

Specification for Pouch Square Cell

Can be customized,providing diversified solutions for various application scenarios.

* With in 3000mAh,4.2V/4.35V/4.4V/4.45V,each size can be customized.

  • Model
  • Voltage
    (V)
  • Capacity
    (mAh)
  • Thickness
    (mm)
  • Width
    (mm)
  • Height
    (mm)
  • Fast Charge Time
    (min)
  • Pulse Discharge Current
    (A)
  • Cycle Life
  • 432243
  • 3.7
  • ≥420
  • 4.3
  • 22.0
  • 43.5
  • 40~60
  • 1~3A
  • 500
  • 513350
  • 3.7
  • ≥1000
  • 5.1
  • 32.9
  • 49.9
  • 40~60
  • 3~5A
  • 500
  • 663038
  • 3.7
  • ≥1000
  • 7.1
  • 29.7
  • 41.5
  • 40~60
  • 3~5A
  • 500
  • 902378
  • 3.7
  • ≥1750
  • 9.1
  • 23
  • 78.5
  • 40~60
  • 3~15A
  • 500
  • 1002148
  • 3.8
  • ≥1400
  • 10.3
  • 21.5
  • 48.5
  • 40~60
  • 3~5A
  • 500
  • 1002071
  • 3.8
  • ≥1850
  • 10.3
  • 21.5
  • 71.5
  • 40~60
  • 3~5A
  • 500
  • 1302062
  • 3.85
  • ≥2000
  • 13.3
  • 20.5
  • 62.5
  • 40~60
  • 3~8A
  • 300
  • 1202162
  • 3.85
  • ≥2080
  • 12.5
  • 21.5
  • 62.5
  • 40~60
  • 3~8A
  • 300
  • 1352522
  • 3.85
  • ≥2600
  • 14.0
  • 25.8
  • 55.9
  • 40~60
  • 3~9A
  • 500
