18650 lithium battery
  • 18650 lithium battery
  • cylindrical cell sizes
  • pouch cell dimensions

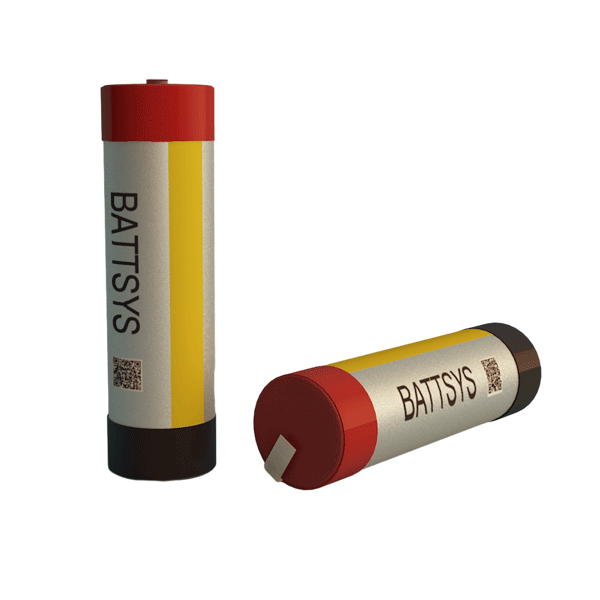

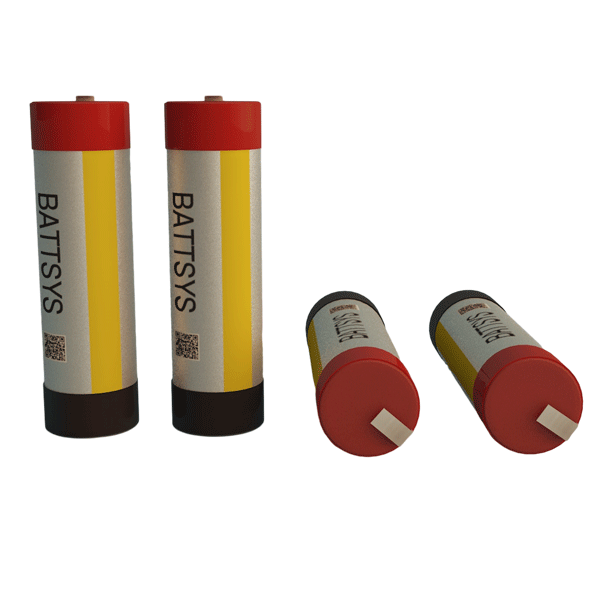

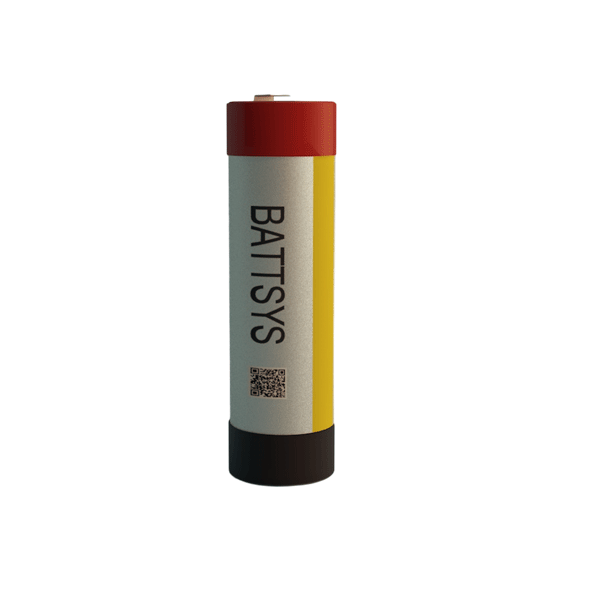

Pouch Cylindrical Cell

Pouch Cylindrical Cell

Excellent safety performance.

Wide voltage coverage range，4.2~4.5V series.

Ultra-high energy density，discharge rate，and power.

Fast charge，intellectual property rights for lithium battery charging technology.

Comply with safety test standards for high temperature external short-circuit，over charge，drop，crush，impact，etc.

Certification
Customized Requirements

Features for Pouch Cylindrical Cell

High safety performance. Wide voltage coverage range，4.2~4.4V serises，Ultra-high energy density，discharge rate，and power.

High Safety
High Energy Density
High Rate Discharge

Applications for Pouch Cylindrical Cell

Widely employed in HNB Devices，Vaping Device，Power tools，electric toothbrushes，stylus pens，voice recorders，and beauty devices，among others.

HNB Devices

Vaping Device

Power tools

Medical Devices and Emerging Digital

Specification for Pouch Cylindrical Cell

Can be customized，providing diversified solutions for various application scenarios.

* With in 3000mAh，4.2V/4.35V/4.4V/4.45V，each size can be customized.

  • Model
  • Voltage
    (V)
  • 0.5C Capacity
    (mAh)
  • 1C Capacity
    (mAh)
  • Diameter
    (mm)
  • Height
    (mm)
  • Charge Rate
    (C)
  • Fast Charge Time
    (min)
  • Pulse Discharge Current (A)
  • Cycle
  • 11330
  • 3.7
  • ≥300
  • ≥280
  • 11.5
  • 33.5
  • 2
  • 3~10
  • 3~5
  • 500
  • 13300
  • 3.7
  • ≥450
  • ≥450
  • 13.5
  • 30.5
  • 2
  • 10~20
  • 3~5
  • 500
  • 14500
  • 3.7
  • ≥980
  • ≥930
  • 14.5
  • 50.5
  • 1~1.5
  • 20~30
  • 5~10
  • 500
  • 16400
  • 3.7
  • ≥950
  • ≥900
  • 16.5
  • 40.5
  • 1~1.5
  • 20~30
  • 3~5
  • 500
  • 16600
  • 3.7
  • ≥1600
  • ≥1500
  • 16.5
  • 60.5
  • 2
  • 30~45
  • 5~10
  • 500
  • 16650
  • 3.7
  • ≥1800
  • ≥1700
  • 16.5
  • 65.5
  • 2
  • 30~45
  • 3~5
  • 500
  • 18500
  • 3.7
  • ≥1600
  • ≥1500
  • 18.5
  • 50.5
  • 2
  • 30~45
  • 10~15
  • 500
  • 18650
  • 3.7
  • ≥2250
  • ≥2150
  • 18.5
  • 65.5
  • 2~2.5
  • 30~45
  • 5~10
  • 500
Message Form

Pouch Cylindrical Cell manufacturers & suppliers

Company
Name
E-Mail *
Tel
Message *
CODE
Related Products
Related News
The four major product characteristics of large cylindrical lithium batteries
What are the specifications and dimensions of cylindrical lithium-ion batteries?

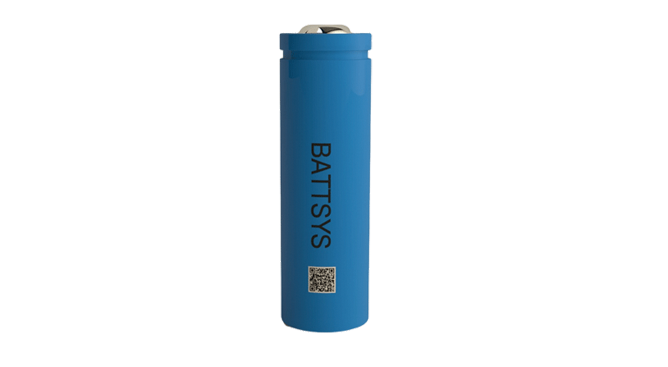

Customized cylindrical lithium batteries.
